Turn Off The Upper/right Axis Tick Marks

I want to make the ticks on the right and upper axis invisible and am not sure what the third line should be: import matplotlib.pyplot as plt plt.plot(X,Y) #plt.upper_right_axis_ti

Solution 1:

As pointed by @imsc, You can tweak the visibility of the tick marks by setting the position of the ticks to the bottom and left (if you don't want them on top and right) using the ax.xaxis.set_ticks_position and ax.yaxis.set_ticks_position methods.

If you also want to set the axis itself invisible, check out the matplotlib.spines class. You just have to set the color of the spines to none using the ax.spines[spine].set_color method.

If you have a lot of plots to display, and don't want to turn manually the axis/ticks off each time, below is a function that will do the job for you.

Basically, you define for each axis the color you want (in this case none will render it invisible), and the function will also "turn off" the ticks marks for all the axis invisible. I have also added options to define the linewidth of the axis lines, as well as the fontsize of the ticklabels and the pad between the ticklabels and the ticks.

defcustomaxis(ax, c_left='k', c_bottom='k', c_right='none', c_top='none',
               lw=3, size=12, pad=8):

    for c_spine, spine inzip([c_left, c_bottom, c_right, c_top],
                              ['left', 'bottom', 'right', 'top']):
        if c_spine != 'none':
            ax.spines[spine].set_color(c_spine)
            ax.spines[spine].set_linewidth(lw)
        else:
            ax.spines[spine].set_color('none')
    if (c_bottom == 'none') & (c_top == 'none'): # no bottom and no top
        ax.xaxis.set_ticks_position('none')
    elif (c_bottom != 'none') & (c_top != 'none'): # bottom and top
        ax.tick_params(axis='x', direction='out', width=lw, length=7,
                      color=c_bottom, labelsize=size, pad=pad)
    elif (c_bottom != 'none') & (c_top == 'none'): # bottom but not top
        ax.xaxis.set_ticks_position('bottom')
        ax.tick_params(axis='x', direction='out', width=lw, length=7,
                       color=c_bottom, labelsize=size, pad=pad)
    elif (c_bottom == 'none') & (c_top != 'none'): # no bottom but top
        ax.xaxis.set_ticks_position('top')
        ax.tick_params(axis='x', direction='out', width=lw, length=7,
                       color=c_top, labelsize=size, pad=pad)
    if (c_left == 'none') & (c_right == 'none'): # no left and no right
        ax.yaxis.set_ticks_position('none')
    elif (c_left != 'none') & (c_right != 'none'): # left and right
        ax.tick_params(axis='y', direction='out', width=lw, length=7,
                       color=c_left, labelsize=size, pad=pad)
    elif (c_left != 'none') & (c_right == 'none'): # left but not right
        ax.yaxis.set_ticks_position('left')
        ax.tick_params(axis='y', direction='out', width=lw, length=7,
                       color=c_left, labelsize=size, pad=pad)
    elif (c_left == 'none') & (c_right != 'none'): # no left but right
        ax.yaxis.set_ticks_position('right')
        ax.tick_params(axis='y', direction='out', width=lw, length=7,
                       color=c_right, labelsize=size, pad=pad)

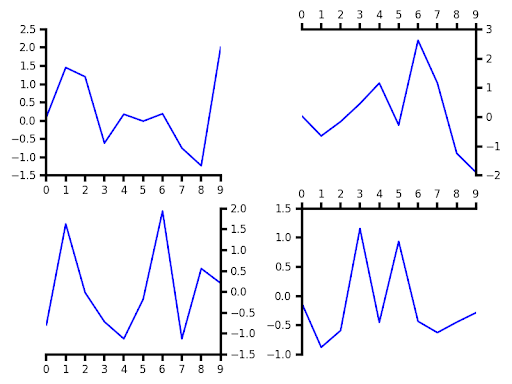

Below is an example of how to use it:

import numpy as np
import matplotlib.pyplot as plt

fig, ([ax1, ax2], [ax3, ax4]) = plt.subplots(nrows=2, ncols=2)

for ax in [ax1, ax2, ax3, ax4]:
    ax.plot(np.random.randn(10), lw=2)

customaxis(ax1) #default: no right and top axis
customaxis(ax2, c_left='none', c_bottom='none', c_right='k', c_top='k')
customaxis(ax3, c_left='none', c_bottom='k', c_right='k', c_top='none')
customaxis(ax4, c_left='k', c_bottom='none', c_right='none', c_top='k')

plt.show()

Solution 2:

Have a look at http://matplotlib.sourceforge.net/examples/pylab_examples/spine_placement_demo.html

import pylab as pt= p.arange(0.0, 2.0, 0.01)
ax=p.subplot(111)
s = p.sin(2*p.pi*t)
ax.plot(t, s, color='r',linewidth=1.0)
ax.xaxis.set_ticks_position('bottom')
ax.yaxis.set_ticks_position('left')
p.show()

Solution 3:

tick_params should do it.

I don't have matplotlib installed on my current computer, so I can't test it, but this should work:

import matplotlib.pyplot as pltax= plt.subplot(111)
plt.plot([0,1], [0,1])
ax.tick_params(labeltop='off', labelright='off')
plt.show()

Solution 4:

plt.tick_params(top='off', right='off', which='both')

I used above code with 'on' instead of 'off' ,for displaying tick marks on top and right along with default 'bottom'and 'left', in matplotlib 2.0
